Home Optical Windows

Wide Infrared Transmittance Windows

IR Optical Windows for Industrial Thermal Imaging

Wide Infrared Transmittance Windows

Infrared windows are optical components designed to transmit infrared radiation, typically fabricated from substrates featuring tailored infrared optical characteristics.

Payment :
T/T Paymen
Product Origin :
China
Shipping Port :
Fuzhou, China

Inquiry Now

Product categories

New products

Product Details

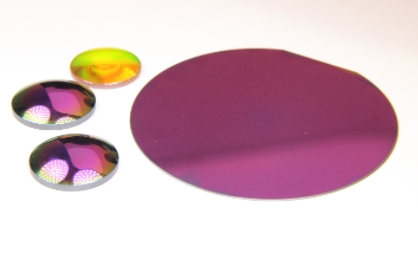

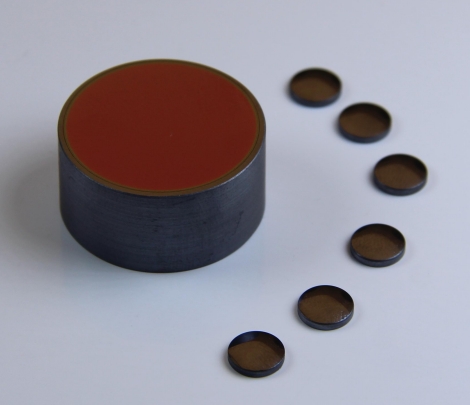

Wide Infrared Transmittance Windows

These substrates deliver high transmittance with low absorption and scattering across multiple infrared bands, paired with excellent optical uniformity and stability.

They find broad applications in defense, industrial and medical systems.

Key Considerations for Infrared Window Selection:

1. Confirm your target infrared wavelength band (e.g. germanium for 3–5 μm, ZnSe for 8–12 μm).

2. Evaluate environmental resistance requirements (e.g. ZnS with diamond-like carbon (DLC) coating for defense applications).

3. Prevent mechanical damage (e.g. ZnSe windows require protective mounting housings).

Specification
Material	Si，ZnSe，ZnS，CaF₂，BaF₂，MgF₂
Size	0.5-600 mm
Dimension Tolerance	+0.0, -0.1 mm
Thickness Tolerance	± 0.1 mm
Parallelism	1' (standard), 10" (high precision)
Flatness	1λ to λ/20 @632.8 nm
Surface Quality	60/40(standard), 10/5(high precision)
Effective Aperture	85%
Coating	Upon request
Thickness Tolerance	±0.13

Applications:

1. Thermal imaging systems.

2. Gas detection.

3. Spacecraft infrared remote sensing.

Hot Tags : Infrared Windows Glass Windows Fused Silica Windows Quartz Glass Windows Heraeus Fused Silica Windows
