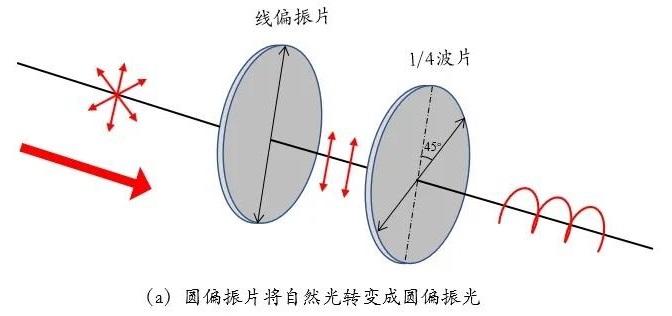

A thin‑film circular polarizer consists of a linear polarizer laminated with a quarter‑wave retarder whose fast axis is aligned at 45°.
It converts incident unpolarized or linearly‑polarized light into either left‑ or right‑handed circularly‑polarized light.
Payment :
T/T PaymentProduct Origin :
ChinaShipping Port :
Fuzhou, ChinaProduct Overview:
Thin‑film circular polarizers feature a sandwich structure. A linear polarizing film and quarter‑wave retarder are bonded between two optical‑glass substrates.
They enable mutual conversion between linearly‑polarized light and circularly‑polarized light, and offer advantages including high extinction ratio, broad operating wavelength band, and large incident‑angle tolerance.
Scope of Use:
| Product parameters | |||||
| Materials | Fused Silica, SCHOTT, OHARA, CDGM, Infrared Material | ||||
| Thickness | 0.3 mm±0.03 | ||||
| Surface hardness | ≥3 H | ||||
| Polarization | ≥99.90% | ||||
| Monolithic transmittance | 90%±2% | ||||
| Effective clear aperture | >85% | ||||
| Coating | Upon Request | ||||
