Precision optical glass achromatic Lenses (Doublets)

Precision optical glass achromatic Lenses (Doublets)

Achromatic Lenses (Doublets)

VIS 0° and VIS-NIR coated achromats are also available

Correct for on-axis spherical and chromatic aberrations
Custom achromatic lenses available

Payment :
T/T Payment
Product Origin :
China
Shipping Port :
Fuzhou China

Inquiry Now

Product categories

New products

Product Details

Precision Optical Glass Achromatic Lenses (Doublets)

Achromatic lenses (doublets) consist of a positive, low-index crown glass element cemented to a negative, high-index flint glass element. The elements are chosen to cancel chromatic aberration at two well-separated wavelengths, usually in the blue and red regions of the spectrum. The focal length is constant at those two wavelengths, and focal length shifts are virtually eliminated across the visible spectrum. One common use is diffraction-limited focusing of a laser beam. Negative achromats are typically used when chromatic aberration must be eliminated. In addition to reducing chromatic aberration at the design wavelengths, spherical aberration and coma are greatly reduced.

Specifications:

Material:	Low-index crown glass & high-index flint glass (CDGM, Schott, Ohara, etc.)
Dimension Tolerance:	±0.1 mm(standard), ±0.01 mm(high precision)
Center Thickness Tolerance:	±0.1 mm(standard), ±0.05 mm(high precision)
Paraxial Focal Length:	±2%
Surface Quality:	60/40(standard), 20/10(high precision)
Clear Aperture:	>85%
Surface Figure:	λ/2(standard), λ/4(high precision) @633 nm
Centration:	3 arc minutes
Bevel:	<0.25 mm×45°
Coating:	Upon request

Negative Achromatic Lenses Posistive Achromatic Lenses

Note for Spherical Lens:
a. Other optical glass materials from Schott, Ohara, Hoya or Chinese CDGM, UVFS from Heraeus, Corning, Silicon, ZnSe, ZnS, CaF2, Sapphire are also available upon request .
b. Custom-made Spherical Lenses at any size from diameter 1.0 to 300 mm are available upon request.

One-stop service for vision optics, laser optics, medical optics, 5G optical communication, and military optics.

Typical Size

Material	N-BK7 & N-SF5
Item No.	Φ (mm)	f (mm)	R (mm)	R (mm)	R (mm)	Tc (mm)	Te (mm)	Fb (mm)

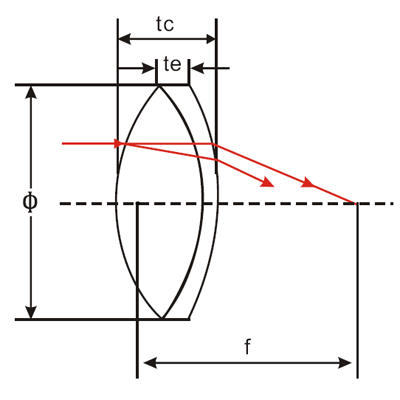

ALP001	6	15	8.831	-6.55	-19.77	2.71	1	13.07
ALP002	6	20	12.36	-8.51	-24.38	2.6	1	18.29
ALP003	6	25	15.7	-10.67	-29.99	2.3	1	23.46
ALP004	6	30	18.88	-12.94	-36.48	1.9	1	28.69
ALP005	8	25	15.6	-10.81	-30.48	2.9	1	23.13
ALP006	8	30	18.88	-12.88	-36.22	2.7	1	28.28
ALP101	10	20	12.32	-9.02	-25.23	3.8	1	17.63
ALP102	12	25	15.35	-11.35	-31.92	4.2	1.3	22.29
ALP103	12.7	30	18.54	-13.49	-37.84	4	1.3	27.36
ALP104	12.7	40	25.23	-17.54	-48.75	3.4	1.3	37.78
ALP105	12.7	50	31.26	-21.93	-62.37	3.1	1.3	47.99
ALP106	12.7	60	37.33	-26.42	-75.86	2.8	1.3	58.13
ALP107	12.7	75	46.77	-32.96	-94.62	2.6	1.3	73.23
ALP108	13	40.5	25.41	-18.07	-50.47	3	1.3	38.48
ALP109	14	44	27.54	-19.54	-54.95	3.3	1.3	41.83
ALP110	18	40	24.27	-18.37	-53.09	5.4	1.5	36.51
ALP111	18	50	31.69	-22	-60.57	4.8	1.5	46.99
ALP112	18	60	37.84	-26.49	-73.79	4.1	1.5	57.3
ALP201	25.4	60	37.33	-27.16	-75.86	7	2	55.57
ALP202	25.4	120	73.28	-54.33	-159.9	4.2	2	117.1

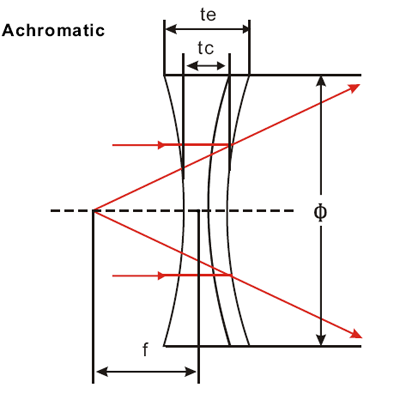

ALN101	12.7	-25	-15.28	13.37	39.17	1.5	2.5	-26.61
ALN102	12.7	-30	-24.72	19.1	56.1	1.5	2.5	-41.56
ALN201	25.4	-40	-29.79	26.85	82.41	2	4.3	-52.66
