Polarizing Beamsplitter Cubes (PBS)

PBS spectroprism

Polarizing Beamsplitter Cubes (PBS)

Polarizing Beamsplitter Cubes are constructed by cemented two right angle prisms
High Damage Threshold
Coated for Laser line 355, 405, 532, 633, 780 - 808, 1064 nm or Broadband

  • Payment :

    T/T Payment

  • Product Origin :

    China

  • Shipping Port :

    Fuzhou, China
Inquiry Now
Download
  • Product Details

Polarizing Beamsplitter Cubes (PBS)

Polarizing beamsplitter cubes (PBS) are assembled by cementing two right‑angle prisms together. A polarization‑sensitive dielectric coating is applied to the hypotenuse face of one prism.

Under normal‑incidence unpolarized light, the input beam is separated into two orthogonally polarized beams: the p‑polarized component transmits straight through, while the s‑polarized component is reflected at 90°.

Specifications:



Product parameters
Materials Fused Silica, SCHOTT, OHARA, CDGM, Infrared Material
Size 5×5×5、10×10×10、12.7×12.7×12.7、15×15×15、20×20×20、25×25×25（可定制) Upon Request
Surface type 1λ to λ/10 @632.8 nm
Surface 60/40 to 10/5 S/D
Effective clear aperture upon request.
Finish 60/40 to 10/5 S/D
Coating upon request.

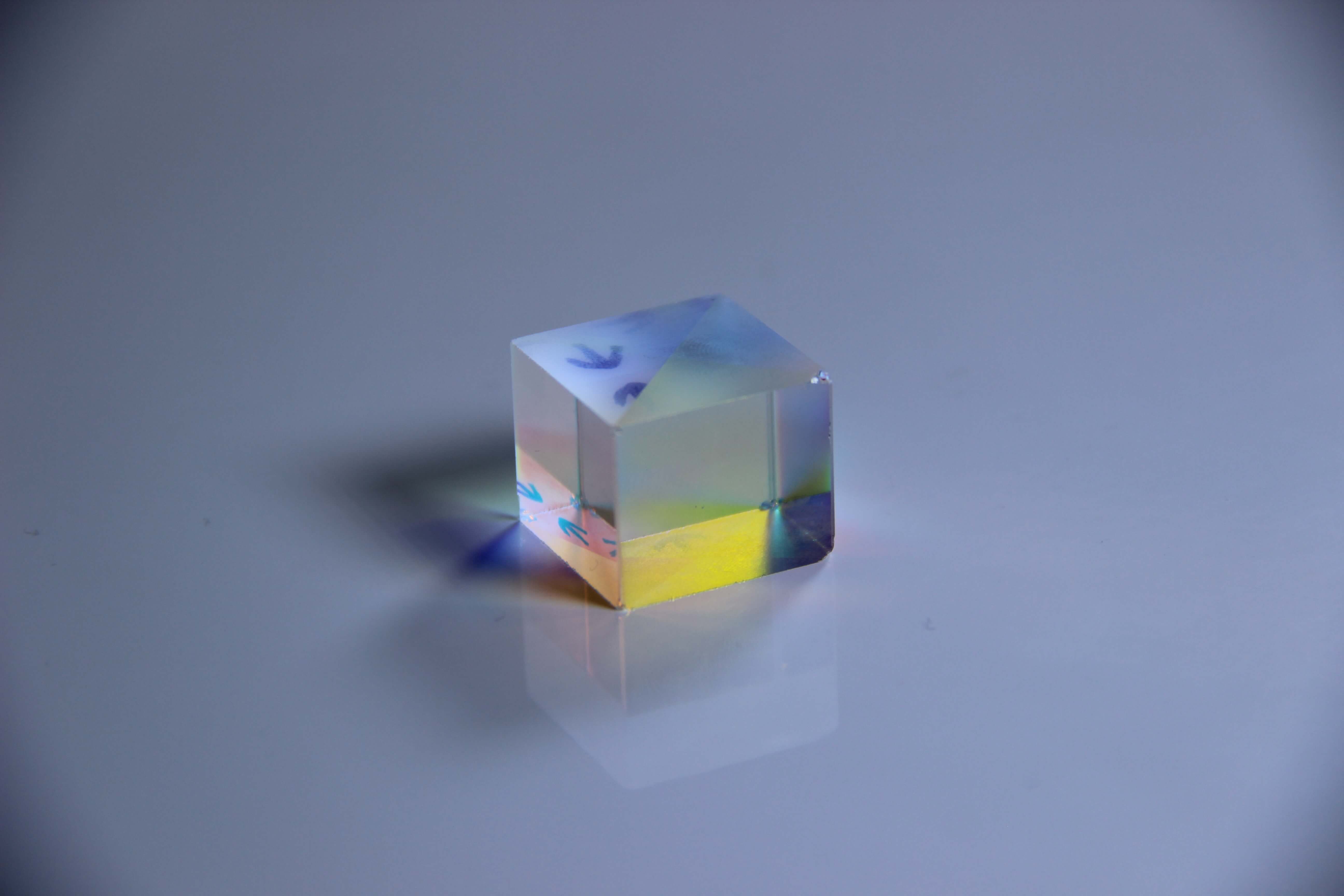

Glue the polarizing prism

Polarizing beamsplitter cubes feature high-precision beam splitting, separating unpolarized incident light into two orthogonally linearly polarized beams with reliable optical performance and stability. Fabricated via a cementing process, these components exhibit low internal stress, high extinction ratio, excellent imaging quality and minimal beam deviation.

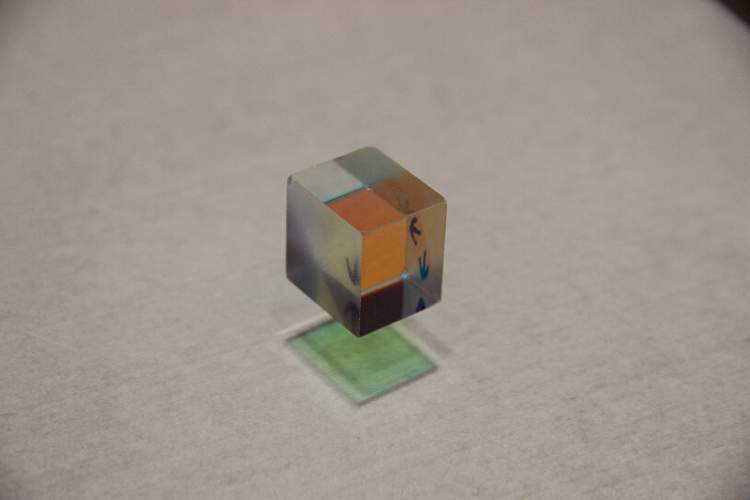

polarizing prism

Our polarization beamsplitter prisms adopt enhanced optical gel bonding, delivering a high laser damage threshold and superior mechanical strength. They withstand high-power laser operation and feature a highly stable structure. Additionally, the design ensures consistent optical performance. The optimized low-stress optical path minimizes performance variation, enabling long-term stable operation.
