Optical Coated Bandpass Filters

Bandpass filters transmit specific wavelengths while blocking all others.

Payment :
T/T Payment
Product Origin :
China
Shipping Port :
Fuzhou, China

Inquiry Now

Product categories

New products

Product Details

Optical Coated Band-pass Filters

1.Product Description

Optical coated band-pass filters are optical components designed to selectively transmit light within a specific wavelength range while blocking unwanted wavelengths.

2.Working Principle:

(1) Utilizes multilayer dielectric coatings deposited on substrates to achieve high transmission (>90%) in the target band and strong blocking (OD4+) of out-of-band light (e.g., UV, visible, or IR).

(2) Typical structure: Combines short-pass (SP) and long-pass (LP) filters to create a well-defined passband.

3. Applications：

(1) Optical detection and analytical instruments.
(2) Lasers and optical communications.
(3) Industrial and machine vision.
(4) Aerospace.

Specification
Materials	Optical glass, UV fused silica (UVFS), silicon (Si)
Size	1-200 mm
Surface Flatness	2λ to λ/10 @632.8 nm
Effective clear aperture	90%
Surface quality	80/50 to 40/20 S/D
Optical density	OD1 to OD6
Coating	Upon Request

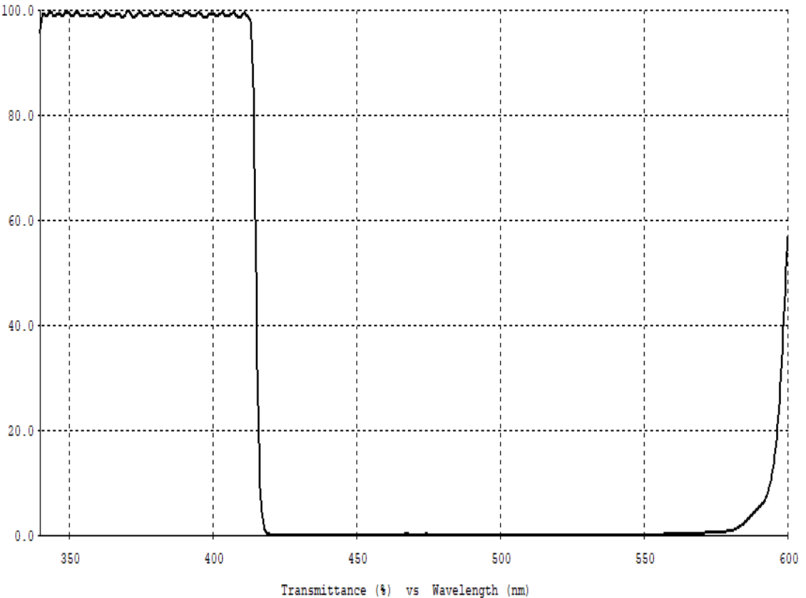

Transmission Curve:

Hot Tags : Optical Bandpass Filters Coated Band Pass Filters Machine Vision Filters Narrow Band Pass Filters UV Band Pass Filters IR Band Pass Filters
