Multi-Band Dichroic Mirrors

A dichroic filter is an optical element with a specialized thin-film structure that selectively reflects or transmits light within a specific wavelength range while absorbing or reflecting other wavelengths.

Payment :
T/T Payment
Product Origin :
China
Shipping Port :
Fuzhou, China

Inquiry Now

Product categories

New products

Product Details

Product Overview：

Dichroic filters are based on the principle of thin-film interference. They separate or combine light by wavelength: light at specific wavelengths is reflected, while other wavelengths are transmitted. This gives them high spectral selectivity and stability.

Applications：

Stage lighting: Mixes or separates different colored light sources to create colorful lighting effects.
Projectors: Separates and combines red, green, and blue light for high-quality image projection.
Fluorescence microscopes: Effectively separates excitation light from emitted light to enable clear fluorescence imaging.
Optical communication: Used in wavelength division multiplexing (WDM) systems to combine and separate optical signals at different wavelengths, improving communication capacity and efficiency.

Specification
Materials	Optical glass, UVFS, Si, etc
Size	1-200 mm
Surface Flatness	2λ to λ/10 @632.8 nm
Effective clear aperture	90%
Surface quality	80/50 to 40/20 S/D
Optical density	OD1 to OD6
Coating	Upon Request

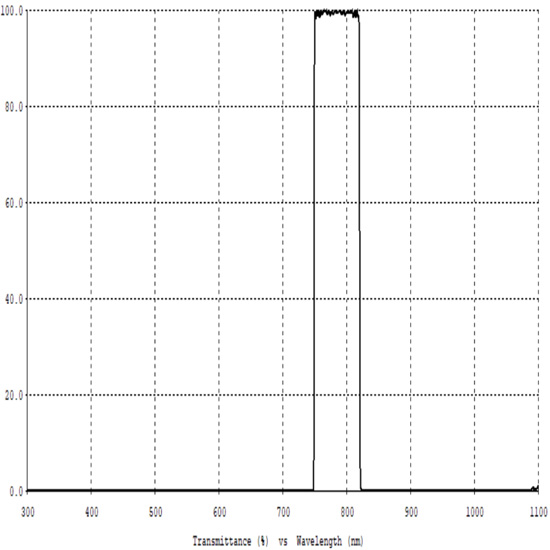

Transmission Curve:
