High Reflective Broadband Dielectric Mirrors

High Reflective Broadband Dielectric Mirrors

Dielectric Mirrors offer near total reflection, minimizing losses in nearly all optical systems.
AOI=45°, R>99.5% (Rs>99.9%, Rp>99.2%).
AOI=0°, R>99.8%

  • Payment :

    T/T Payment, Western Union
  • Shipping Port :

    Fuzhou China
  • product orgin :

    China
  • Product Details

High Reflective Broadband Dielectric Mirrors



Dielectric Mirrors offer near total reflection, minimizing losses in nearly all optical systems. These coatings are very durable, easily cleaned, and resistant to laser damage.

Dielectric mirrors are mirrors composed of multiple layers of different transparent optical materials, characterized by high reflectivity, high damage threshold, and low scattering.Widely used in medical imaging, laser, aerospace, etc.



Specifications:
Material: N-BK7 or UV Fused Silica or other optical Glass
Dimension Tolerance: +0.0, -0.1mm
Thickness Tolerance: +/- 0.1mm
Surface quality: 60/40(Standard), 10/5(High Precision)
Clear Aperture: >85%
Flatness: Lambda/4 per 25mm@633nm
Parallelism: <1'
Bevel: <0.25mmx45°
Coating: One surface(S1) :HR @ design wavelengthBroadband or Narrowband
  The other surface :uncoated

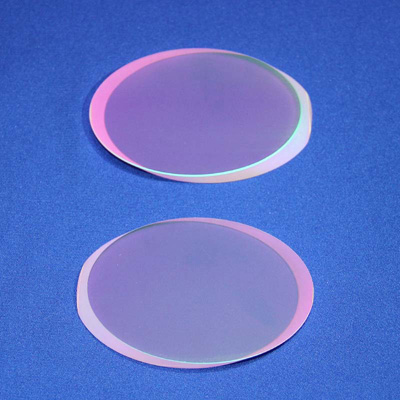

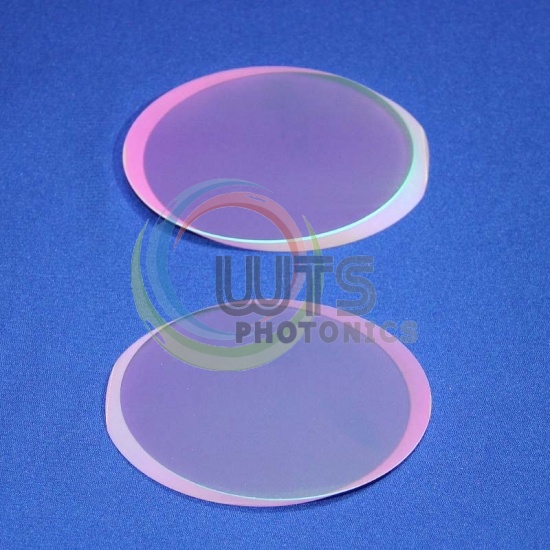

Dielectric MirrorsElliptical Dielectric Mirrors



Typical Sizes:
Size(mm) Size(mm)
Φ5.0x1.0 10.0x10.0x3
Φ10.0x2.0 20.0x20.0x3
Φ12.7x2.0 25.4x25.4x3
Φ15.0x3.0 30.0x30.0x5

Other size and shape are available. Different coating design are available. Contact us now! You can get competition price here!
