High Purity Equilateral Prisms And Dispersive Prisms

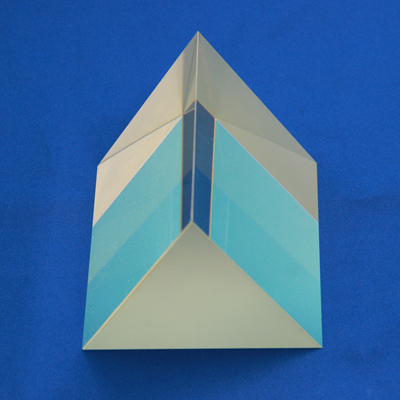

High-quality Optical Glass Equilateral Prisms And Dispersive Prisms

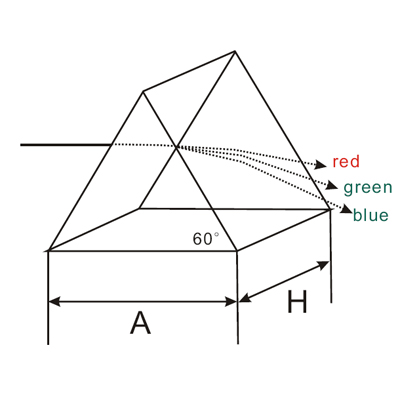

Equilateral prisms are all 60° at three angles, and are often used as dispersive prisms due to their specific geometry and optical properties, which can separate light at different wavelengths, and are widely used in spectral analysis and other fields.Dispersive prisms are usually triangular in cross-section, and based on the difference in the refraction angle of different wavelengths of light in the same material, they can decompose polychromatic light into monochromatic light, which plays a key role in spectrometers, optical parametric oscillators and other equipment.

Specifications:
Material:	N-SF11, F2 etc.
Dimension Tolerance:	+0.1, -0.1mm
Surface quality:	60-40 S/D
Surface flatness:	Lambda/2 @ 632.8nm
Angle Tolerance:	+/-3 arc min
Clear Aperture:	>85% of dimension
Bevel:	<0.25mmx45°
Coating:	AR coating or Upon requirement

Typical Sizes:
A=B=C(mm)	H(mm)	θ
15	15	60°
25.4	25.4	60°
30	30	60°
38.1	38.1	60°
