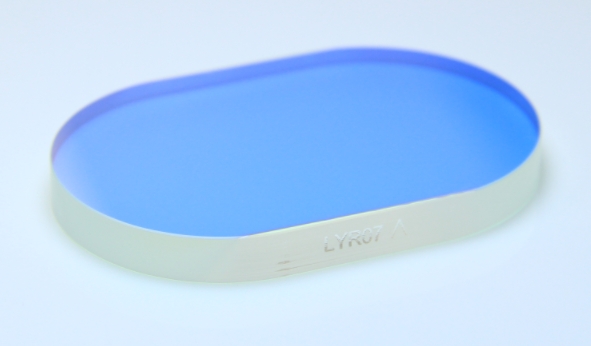

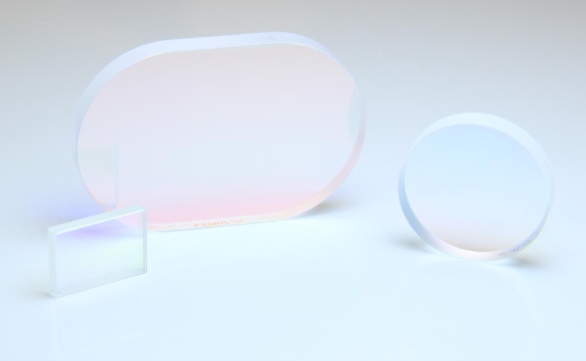

Good-Power Laser Optical Windows

Good-Power Laser Optical Windows

Laser window are optical windows used in the laser light path, and their main functions include: transmitting the laser beam, protecting the internal components of the laser system, and withstanding high power lasers.

  • Payment :

    T/T Payment, Western Union
  • Shipping Port :

    Fuzhou China
  • product orgin :

    China
  • Product Details

Good-Power Laser Optical Windows

The laser window protector is made of fused silica, suitable for high power laser applications requiring good thermal stability. Alternatively, it can be made of N-BK7, which is suitable for laser applications that prioritize cost. Having high surface quality ensures minimal interference with the transmitted light beam.



The material of the laser window sheet needs to fulfill:

1. High laser damage threshold: avoid being ablated by high power laser.

2. Low absorption: reduce optical aberrations caused by thermal effects.

3. High uniformity: avoid beam wavefront aberrations.



Specification
Material sapphire,Fused Silica,K9,Si,Ge,ZnSe,ZnS,CaF₂,GaAs
Size 0.5-600mm
Dimension Tolerance
+0.0, -0.1mm
Thickness Tolerance
± 0.1mm
Flatness 1λ to λ/20 @632.8nm
Surface Quality  60/40(Standard), 10/5(High Precision)
Effective Aperture 90%
Parallelism
1' (Standard),  10" (High Precision)
Coating Upon requirement



Applications:

1. Laser resonant cavity window.

2. Laser processing head protection window.

3.High power laser system.
