Fused Silica Optical Brewster Windows

Fused Silica Optical Brewster Windows

Great for Use in Laser Cavities

Circular Profile When Oriented at 55.57°

Uncoated UV Fused Silica Brewster Windows

Payment :
T/T Payment
Product Origin :
China
Shipping Port :
Fuzhou, China

Inquiry Now

Product categories

New products

Product Details

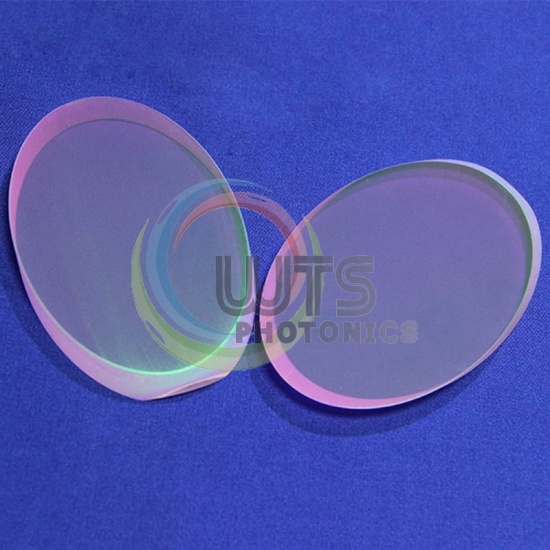

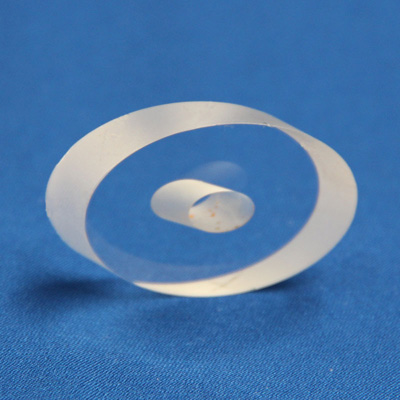

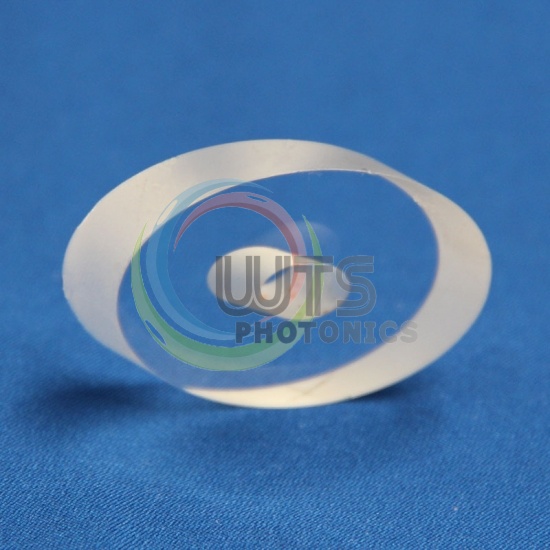

Fused Silica Optical Brewster Windows

Brewster windows are uncoated substrates which are designed to retain an effective circular clear aperture when mounted at Brewster’s angle (55.57°).

Fabricated from UV fused silica, these components show nearly zero laser-induced fluorescence.

They minimize reflection loss for p-polarized light, making them ideal for laser resonators and generation of linearly polarized output.

Great for Use in Laser Cavities
Circular Profile When Oriented at 55.57°
Uncoated UV Fused Silica Brewster Windows

Brewster Windows Specification:

Material:	UV grade Fused Silica
Dimension Tolerance:	+0.0/-0.1 mm
Thickness Tolerance:	± 0.1 mm
Surface quality:	60/40(standard), 10/5(high precision)
Clear Aperture:	>85%
Flatness:	λ(standard), λ/10(high precision) per 25 mm@633 nm
Parallelism:	1' (standard), 10" (high precision)
Bevel:	<0.25 mm X 45°
Coating:	Upon requirement

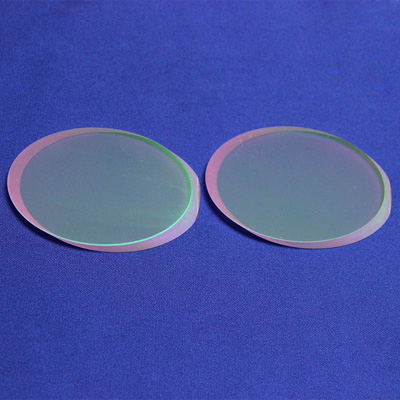

Brewster Windows Elliptical shape windows

Typtical Size

Round Shape	Φ5.0; Φ10.0 ; Φ12.7; Φ15.0; Φ20.0;
Diameter(mm):	Φ25.4; Φ30.0; Φ38.1; Φ50.8; Φ76.2
Square Shape:	5.0x5.0 ; 10.0x10.0 ; 15.0x15.0 ;
WxH(mm)	20.0x20.0; 25.0x25.0; 50.0x50.0
Thickness Tolerance:	0.5; 1.0; 1.5; 2.0; 3.0;
	4.0; 5.0; 6.0; 8.0; 10.0

How to order Windows?
Example:
Material:N-BK7
Diameter:Φ25.4+0.0/-0.1 mm
Thickness:1.0±0.1 mm
Surface quality: 60-40 S/D
Flatness: λ/2 per 25 mm @633 nm
Paralelism: <1 arc minute
Coating:Both side AR,R<0.25% @1064 nm, AOI=0°
