Aerospace-Grade Optical Windows for Harsh Environments

Aerospace-Grade Optical Windows for Harsh Environments

Square window can be made of different materials according to customer needs, with or without AR.Widely used in laser protection, medical imaging, projection, etc.

  • Payment :

    T/T Payment, Western Union
  • Shipping Port :

    Fuzhou China
  • product orgin :

    China
  • Product Details

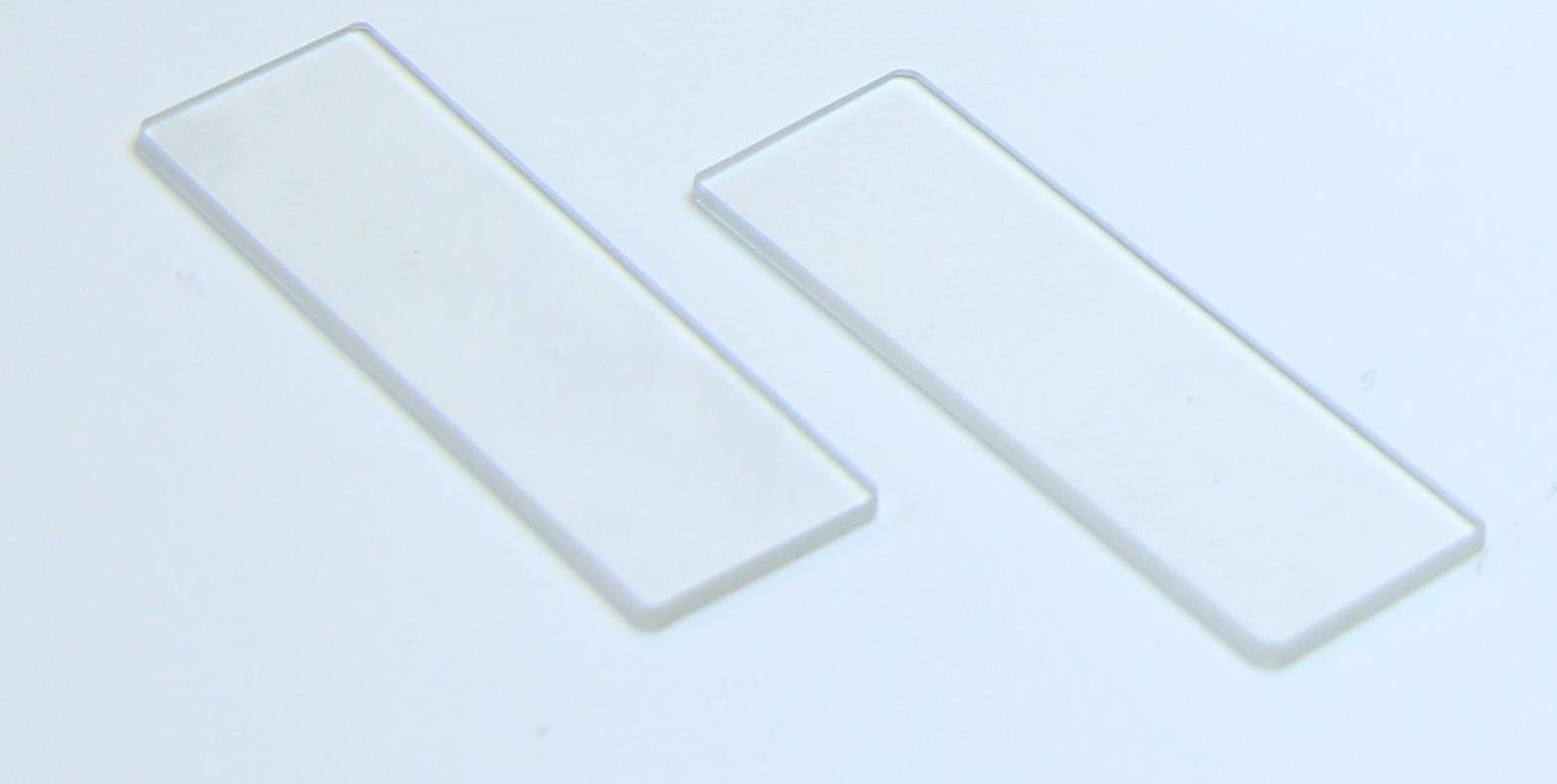

Aerospace-Grade Optical Windows for Harsh Environments

Square window can be made of different materials according to customer needs, with or without AR.Widely used in laser protection, medical imaging, projection, etc.



Characteristics:

Shape: right angles on all sides, commonly square or rectangular.

Edge treatment: usually with chamfered or polished edges to prevent chipping.

Material: Optical glass (e.g. K9, fused silica), crystals (ZnSe, CaF₂) or infrared materials (Ge, Si) are commonly used.



Advantages:

(1) High space utilization: more space-saving in rectangular optical paths or systems that require close alignment (e.g. laser arrays, fiber coupling).

(2) Easy to fix: Right-angled edges are easy to position with mechanical fixtures and are suitable for integration into modular devices.

(3) Flexible cutting: can be cut from large size substrates, reducing material waste.





Specification
Material Fused Silica,, SCHOTT, OHARA, CDGM,Infrared Material
Size 0.5-600mm
Dimension Tolerance
+0.0, -0.1mm
Thickness Tolerance
± 0.1mm
Flatness 1λ to λ/20 @632.8nm
Parallelism
1' (Standard),  10" (High Precision)
Surface Quality 60/40(Standard), 10/5(High Precision)
Effective Aperture 90%
Coating Upon requirement



Main applications:

(1) Electronic device display;

(2) Lighting systems;

(3) laser protection;

(4) medical imaging;

(5) projection etc.
